Freestanding Counterweight Anchor Includes twelve 20kg weight plates 7255003

Freestanding Counterweight Anchor Includes twelve 20kg weight plates 7255003 - Image 3

SKU 7255003 Categories Anchorages, Fall Protection Equipment, Fall Restraint, Fall Restraint Systems, Horizontal Anchorage Lifeline Systems Brand: 3M DBI Sala

Only £2,690.00
(£2,241.67 ex VAT)

3M SALA Freestanding Counterweight Anchor 2100180 includes the 12 20kg weight plates. 7255003: Freestanding Counterweight Anchor, does include the twelve 20.3kg plates, roof post, base and D-ring 7200439: Single Counterweight Only, 20.3kg Meets EN 795, Class E requirements.

Non-penetrating design does not attach to the working surface, reducing the possibility of damage
Built-in shock absorbing post provides added safety to user and structure
Fall arrest and restraint rated for one worker for job site versatility
For use in general concrete, steel or asphalt construction
Approved for use on these roof types: concrete, single ply membrane, bitumen membrane, asphalt sanded and asphalt stone chippings
Ideal for use on flat surfaces up to a maximum of 5 degrees slope/pitch

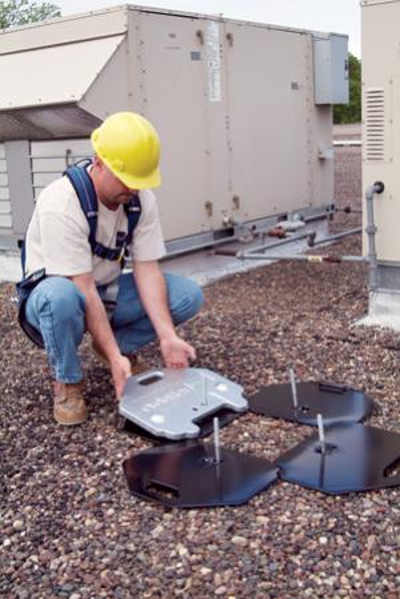

Counterweights are 45 lbs (20.3kg) and come with a integral carrying handle for easy transport and set-up

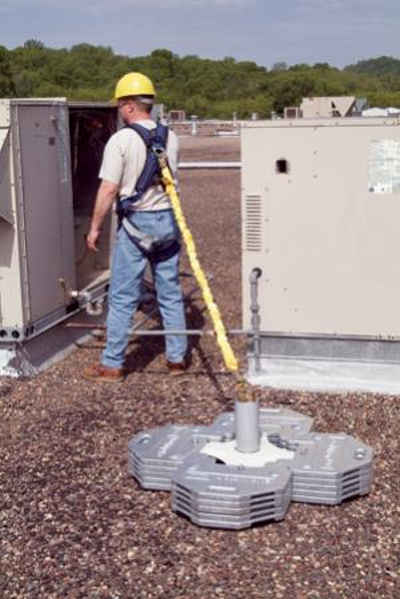

Safe and Secure Anchor The freestanding counterweight anchor provides a tie-off point for personnel performing work on flat roofs or structures. The anchor is fall arrest rated and can be used as a single anchor point system. After set-up, simply attach your shock absorbing lanyard, self retracting lifeline or rope grab and lifeline and you are ready to go. Non-Penetrating Design This anchor is a counterweight type, simply placed on top of the working surface. Weighted bases are added to rubber trays that are connected to a shock absorbing tie-off post. The anchor’s freestanding design installs without penetrating the roof sheathing or surface, saving valuable time and money. In addition, the design reduces the possibility of surface damage, roof leaks and voided roof warranties. Specialised Load Distributing Design This anchor incorporates a revolutionary shock absorbing system called LEAP™. The LEAP™ post (with tie-off point) has an integral energy absorber that deploys in a controlled manner to absorb the forces generated during a fall. This specialized design provides added safety to the attached worker and better distributes the forces to the anchor and structure. By limiting the forces this way, the integrity of the roof is also preserved. Easy Installation Installation of the anchor system is simple, fast and efficient. Due to its modular design, the installer will never have to lift more than 20.3kg. In some applications, the entire system can be lifted (by forklift or crane) into place for instant set-up and use. Refer to instruction manual for complete details
